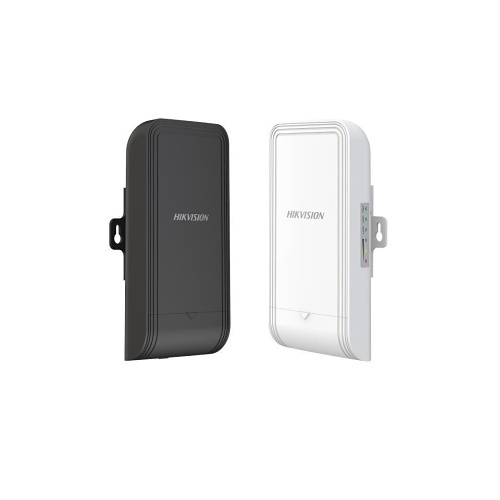

رادیو وایرلس هایک ویژن مدل DS-3WF3000-EI-5AC/P

• Up to 3 km wireless transmission distance
• 867 Mbps 802.11ac wireless bridge
• Built-in 8 dBi 2 x 2 MIMO antenna
• Visualized topology management
• Standard PoE Input & Output
• Plug and Play

• رادیو وایرلس هایک ویژن (یک جفت)

  مدل

  DS-3WF3000-EI-5AC/P

  پهنای باند 2.4 گیگاهرتز و 300 مگابیت در ثانیه

  فاصله انتقال بیسیم تا 3 کیلومتر

• 867 مگابیت برثانیه پل بیسیم 802.11ac

  آنتن داخلی 8dbi 2*2 MIMO

  دارای خروجی , ورودی  POE

  فناوری هشدار فوری

  1. ست شده و آماده نصب

  ضدآب و دارای استاندارد IP55

  دمای قابل تحمل -22 تا +149F

  پشتیبانی از فناوری

  • Visualized topology management

    اقلام همراه: آداپتور 48 ولت

• Product Dimensions (W × H × D)90.8 mm × 187.87 mm × 57.87 mm (3.58” × 7.4” × 2.28”
• Package Dimensions (W × H × D)256 mm × 231 mm × 86 mm (10.07″ × 9.09″ × 3.38″)
• Net Weight0.26 kg (0.57 lb) per device
• Gross Weight1.1 kg (2.43 lb)
• Packing ListWireless Bridge × 2,PoE Power Supply × 2,AC Cord × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Binding Tape × 4
• Packing MethodPacking in pairs
• Working Temperature-30 °C to 65 °C (-22 °F to 149 °F)
• Working Humidity5% to 95% (no condensation)
• Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
• Storage Humidity5% to 95% (no condensation)
• Installation ModePole Mounting
• Ingress ProtectionIP55
• Power Consumption2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W

• Wireless Parameter
• Max. Transmission Rate of Air Interface≤ 867 Mbps
• Wireless StandardIEEE 802.11/a/n/ac
• Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz
• Antenna Gain8 dBi
• Antenna Angle(H) Beamwidth [3 dB] 50°, (V) Beamwidth [3 dB] 50°
• Transmitting Power22 dBm @11ac 80MHz MCS0 (Note: Transmitting power may vary with local regulations.)
• Receiving Sensitivity-84 ±2dBm@AC80-MCS0
• Throughput RatePTP: 90 Mbps/0.5 KM(AC80),90 Mbps/1 KM(AC80),40 Mbps/3 KM(AC80),PTMP(1 to 4): 20 Mbps/3 KM(AC80)

• Hardware Parameter
• Network Interface2 × 10/100 Mbps RJ45 ports
• LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
• ResetHardware resetting button

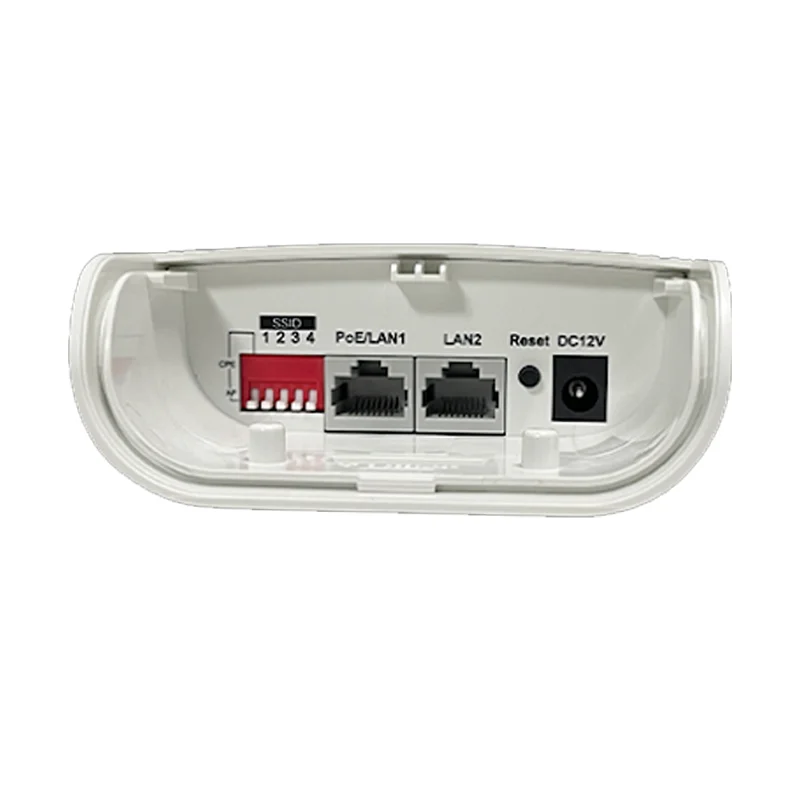

• Power Supply48V PoE/12~24V DC;Check the physical interface image below for more details.

• Software Function
• Application FunctionIFM,IPM,DFS,TPC
• Channel Width20/40/80 MHz
• Channel SelectionAuto/manual selection
• Security ModeWPA2-PSK
• Security MechanismWireless network name hidden
• Network ProtocolNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
• Management MethodHCP,Web,iVMS-4200,HPP
• System LogSyslog,Control center information
• UpgradeWeb,iVMS-4200,HCP,HPP
• HPP

  Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

  1. Reboot device

  2. Restore device

  3. Display the topology information

  4. Display the connection status between AP and CPEs, including signal intensity, background noise, sending & receiving rate

  5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power

  6. Bridge alignment

  7. Spectrum scanning

  8. PoE output management

• PoE Power Supply
• PoE PortAP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT
• PoE Power Budget10 W
• PoE Distance100 m

• Approval
• EMCCE-EMC(EN 55032, EN 55035, EN 61000-3-2, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4), IC(ICES-003, Issue 7),RCM(AS/NZS CISPR 32)
• SafetyCB (IEC 62368-1),CE-LVD (EN 62368-1)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
• RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,EN 301 489-1,EN 55032, EN 55035, EN 61000-3-2, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4, EN 50385, EN IEC 62311, EN 62368-1
